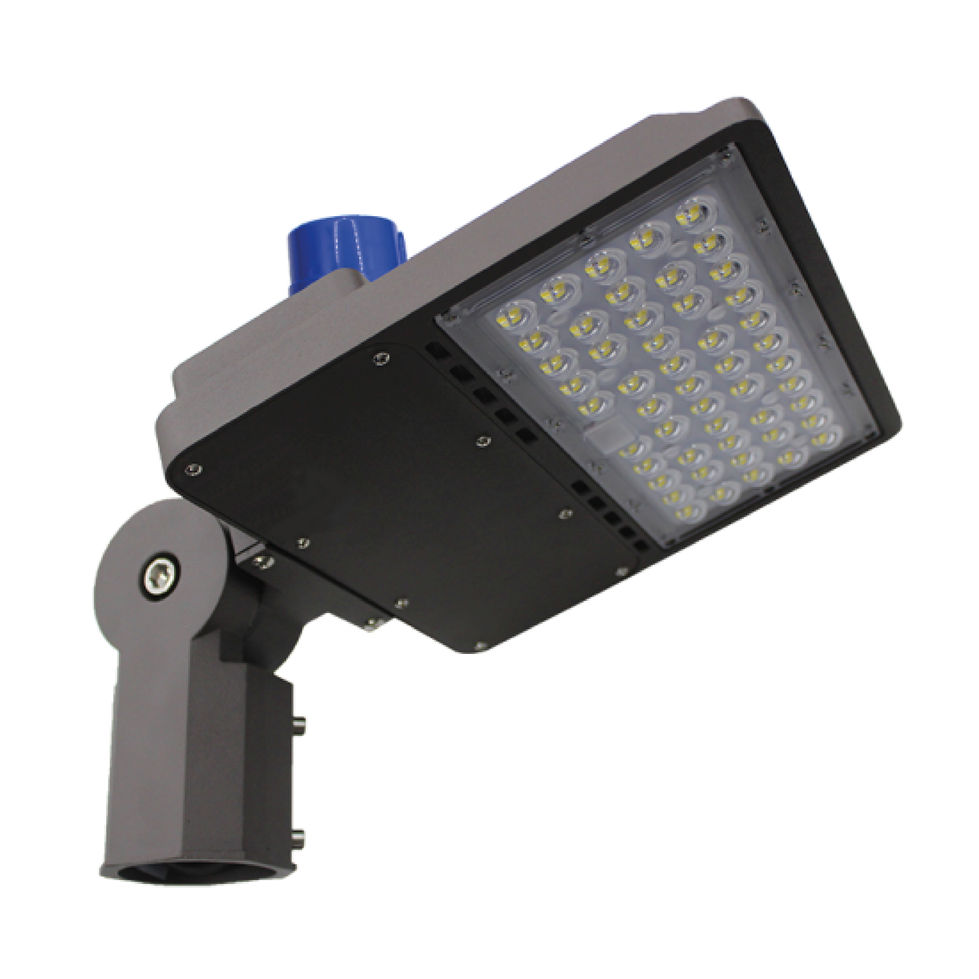

LED Street Light CCT - SXIMST01-200WCT
High-performance 200W LED street light with integrated photocell sensor and
3CCT selectable technology. Designed for roadways, highways, parking lots,
and large outdoor areas requiring high lumen output.
Features
• Integrated Photocell Sensor (Auto ON/OFF)
• 3CCT Selectable: 4000K / 5000K / 6000K
• Type III Light Distribution
• High Efficiency: 140–150 lm/W
• Wide Voltage Range: 120–277 VAC
• Slipfitter Arm A-C Included
• Compatible with Wall Mount & Pole Mount
• Durable Dark Bronze Finish
Application
• Highways
• Main Roads
• Large Parking Areas
• Industrial Complexes
• Commercial Outdoor Areas
Physical Data
|
Finish |
Dark Bronze |
|
Protection Level - IP |
IP65 |
|
Dimensions (LxWxH) |
300×300×72 mm |
|
Body Frame |
Die -Cast Aluminium |
|
Operation Temperature |
-40°C to +50°C |
|
Mounting Options |
Slipfitter Arm A-C |
Electrical Data
|
Input Power |
200W |
|
Power Switchable |
YES |
|
Operating Voltage |
120-277 V |
|
Frequency |
50-60 Hz |
|
Power Factor |
>0.95 |
|
CRI |
70 |
Optical Data
|
Color Temperature (CCT) |
4000K,5000K, 6000K |
|
Lumens |
140-150 Lm/W |
|
Beam Angle |
80x150° |
|
Type of Distribution |
Direct Symmetrical |
|
Life Span |
50 000 H |
|
Optical Material |
Diffuser PC |
