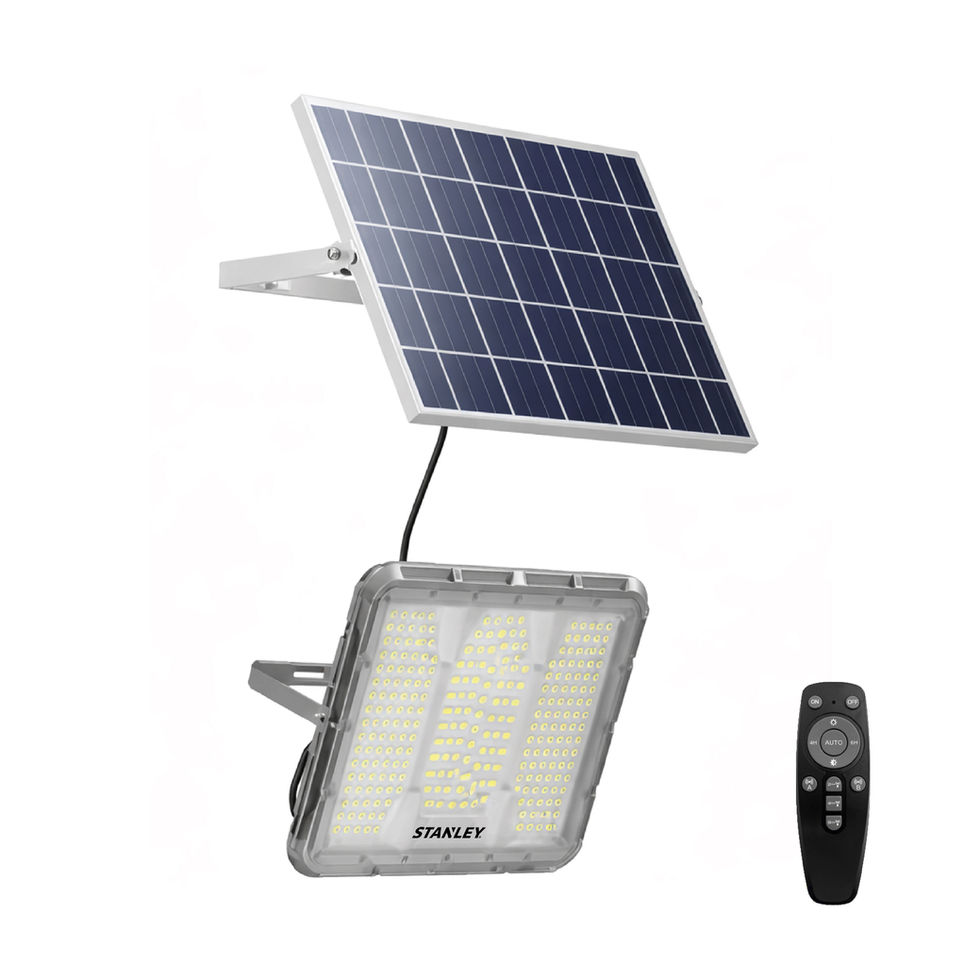

LED Foodlight Solar - SXIMSFL01
LED luminaire for street and outdoor lighting, modern and compact design,
uniform light projection, high efficiency, long life and easy installation,
reduces energy consumption and maintenance costs.
Features
Heavy Duty Die Cast aluminum housing with ample heat sinking.
LED fixture with bracket can adjustable in 0-270 degrees.
Control Remote Included
Slipfit Arm included
IP65/IK08.
Long Lifespan.
Application
Park
Square
Trails
Residential buildings
Parking lot
Bridges
Specifications
|
Model |
Power |
Lumen |
Solar Panel |
Charging Time |
|
SXIMSFL01-25W3K |
25 W |
170 Lm/W |
8W / 6V |
5 Hrs |
|
SXIMSFL01-25W6K |
25 W |
170 Lm/W |
8W / 6V |
5 Hrs |
|
SXIMSF-01-60W6K |
60 W |
170 Lm/W |
18W / 6V |
6Hrs |
|
SXIMSFL01100W6K |
100 W |
170 Lm/W |
28W / 9V |
5Hrs |
|
SXIMSFL01200W3K |
200 W |
170 Lm/W |
35W / 9V |
4 Hrs |
|
SXIMSFL01300W6K |
300 W |
170 Lm/W |
35W / 9V |
5 Hrs |
Optical Data
|
Color Temperature (CCT) |
3000K or 6000K |
|
Beam Angle |
110° |
|
Type of Distribution |
Direct Symmetrical |
|
Life Span |
50 000 H |
Physical Data
|
Finish |
Grey |
|
Protection Level - IP |
IP65 |
|
Body Frame |
Aluminium + ABS |
|
Optical Material |
Diffuser PC |
|
Operation Temperature |
0°C to +50°C |
Electrical Data
|
Control Remote Included |
YES |
|
Rechargeable battery |
LIFeP04 |
|
RA |
70 |
|
Dimmable |
NO |
|
|
|
Dimensions
|
Model |
Size (LxWxH) |
|---|---|
|
SXIMSFL01-25W3K |
163x50x185mm |
|
SXIMSFL01-25W6K |
163x50x185mm |
|
SXIMSFL01-60W6K |
204x55x237mm |
|
SXIMSFL01-100W6K |
250x55x290mm |
|
SXIMSFL01-200W6K |
250x55x290mm |
|
SXIMSFL01-300W6K |
250x55x290mm |
