Exhaust Fan - SXIM-XF-04

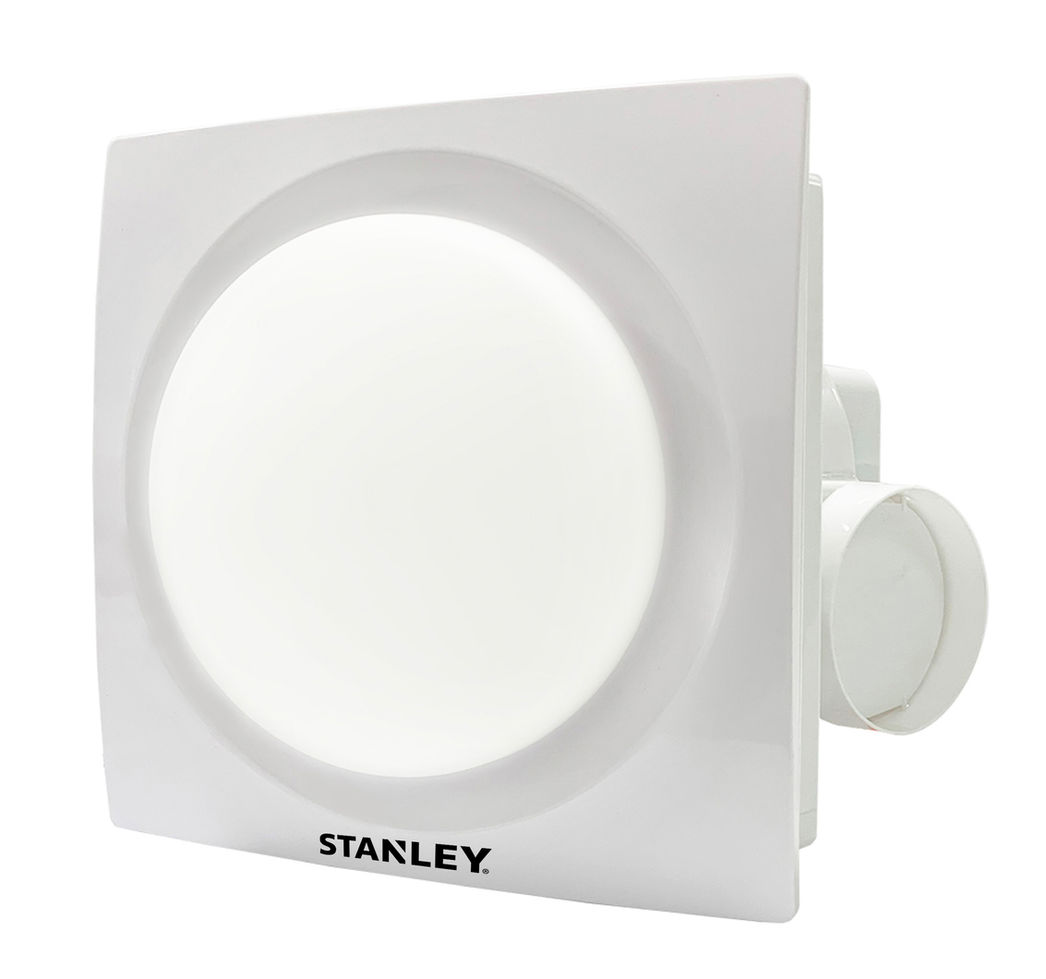

This 8-inch exhaust fan combines high-efficiency ventilation with integrated lighting
functionality. Equipped with a DC double ball bearing motor and 100% copper wire
coil, it ensures smooth operation, low noise, and extended service life. The built-in
3CCT selectable lighting system allows users to adjust color temperature according
to their environment needs, making it ideal for modern residential and commercial
applications.
Features
• High-efficiency DC motor
• Double ball bearing system for extended durability
• 100% copper wire coil for superior conductivity
• Wide voltage compatibility (85–245V)
• Integrated 3 CCT lighting selection
• Stable, low-noise performance
• Modern square design
Application
• Bathrooms
• Kitchens
• Laundry rooms
• Offices
• Commercial spaces
Physical Data
|
Finish |
White |
|
Protection Level - IP |
IP 20 |
|
Dimensions |
8” (200mm) |
|
Type of Installation |
Ceiling Mounted |
|
Panel Material |
ABS |
|
Coil Material |
Double Ball Bearing Copper |
|
Motor Type DC |
DC |
Electrical Data
|
Input Power |
23W |
|
Energy Saving |
YES |
|
Operating Voltage |
85-245V~ |
|
Frequency |
50-60 Hz |
|
CCT |
3000k, 4000k,6500k |
Download Data sheet
